PERFORMANCE SPECIFICATION SHEET
CRYSTAL UNIT, QUARTZ, CR157/U
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-3098.
Pertinent characteristics: 0.8 MHz to 20 MHz; fundamental; noncontrolled; series resonance.
Ltr
Inches
mm
Min
Max
Min
Max
A
---
.725
---
18.42
B
---
.352
---
8.94
C
---
.757
---
19.23
D
.478
.494
12.14
12.55
E
---
.775
---
19.69
F
---
.50
---
12.7
G
---
.317
---
8.05
H
.028
.032
0.71
0.81
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. The wire leads shall be tinned, suitable for soldering.
4. Marking shall be in accordance with MIL-PRF-3098.

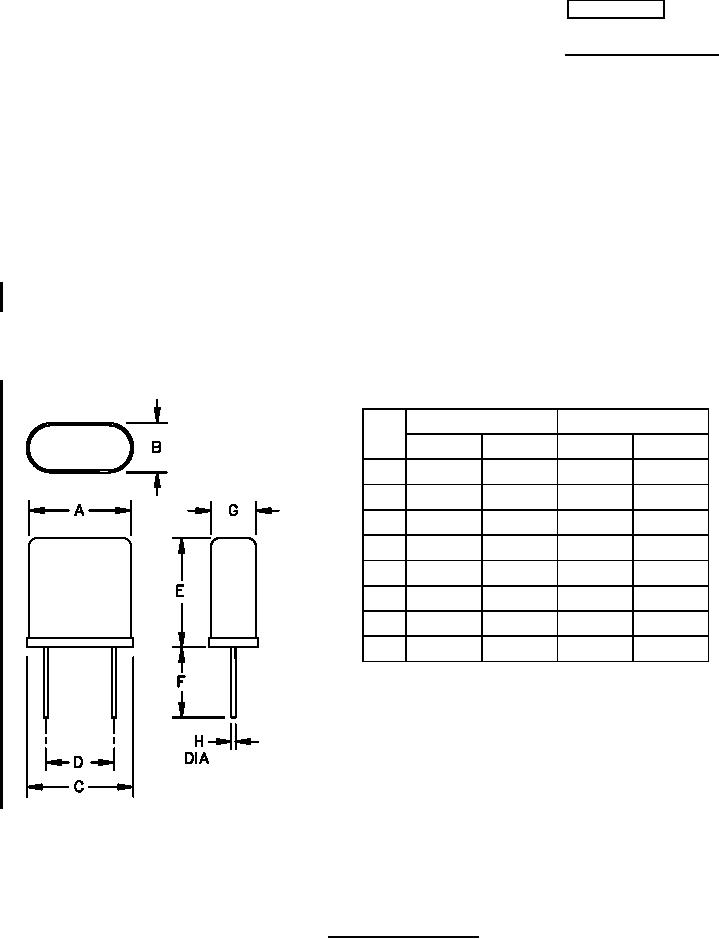

FIGURE 1. Crystal unit - CR157/U.
