INCH-POUND
MIL-PRF-3098/134E
27 July 2005
SUPERSEDING
MIL-PRF-
3098/134D
27 August 1997
PERFORMANCE SPECIFICATION SHEET
CRYSTAL UNIT, QUARTZ, CR153/U
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-PRF-3098.
Pertinent characteristics: 10.0 MHz to 30.0 MHz; fundamental; noncontrolled; antiresonance.
Inches
mm
.002
.05
.003
.08
.005
.13
.008
.20
.010
.25
.015
.38
.025
.64
.030
.76
.040
1.02
.150
3.81
.175
4.45
.183
4.65
.192
4.88
.238
6.05
.402
10.21
.435
11.05
.530
13.46
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Marking to be in accordance with MIL-PRF-3098.
4. The pin undercut may be omitted.

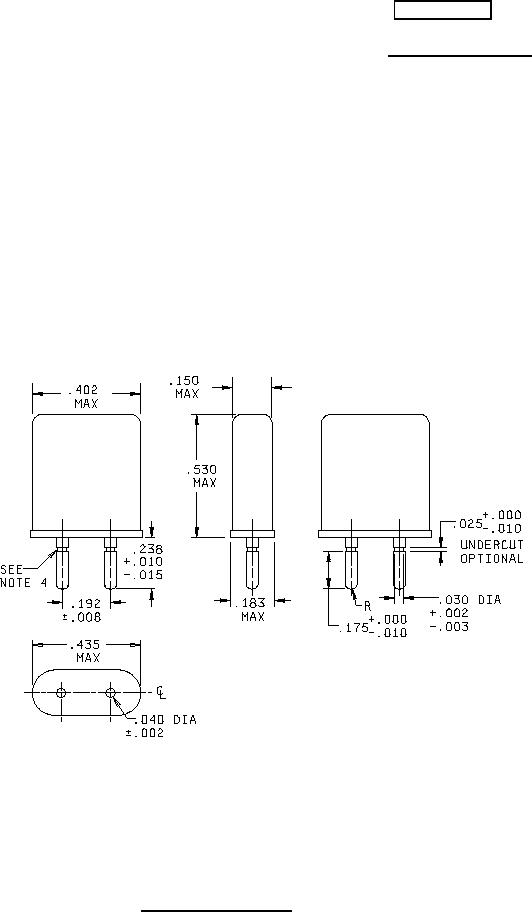

FIGURE 1. Crystal unit - CR153/U.
