INCH-POUND
MIL-PRF-55310/16J
January 9, 2008
SUPERSEDING
MIL-PRF-55310/16H
23 April 2003
PERFORMANCE SPECIFICATION SHEET
OSCILLATOR, CRYSTAL CONTROLLED, TYPE 1 (CRYSTAL OSCILLATOR (XO)),
0.1 Hz THROUGH 80 MHz, HERMETIC SEAL, SQUARE WAVE, TTL
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-PRF-55310.
Pin number
Function
1
NC
2
NC
3
NC
4
NC
5
NC
6
NC
7
B - (GND/CASE)
8
OUTPUT
9
NC
10
NC
11
NC
12
NC
13
NC
14
B+
Inches
mm
Inches
mm
.002
0.05
.27
6.9
.018
0.46
.300
7.62
.100
2.54
.44
11.2
.150
3.81
.54
13.7
.20
5.1
.887
22.53
Configuration A (standard package height (see table I))
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm) for three place decimals and ±.02 (0.5 mm) for two
place decimals.
4. All pins with NC function may be connected internally and are not to be used as external tie points or
connections.

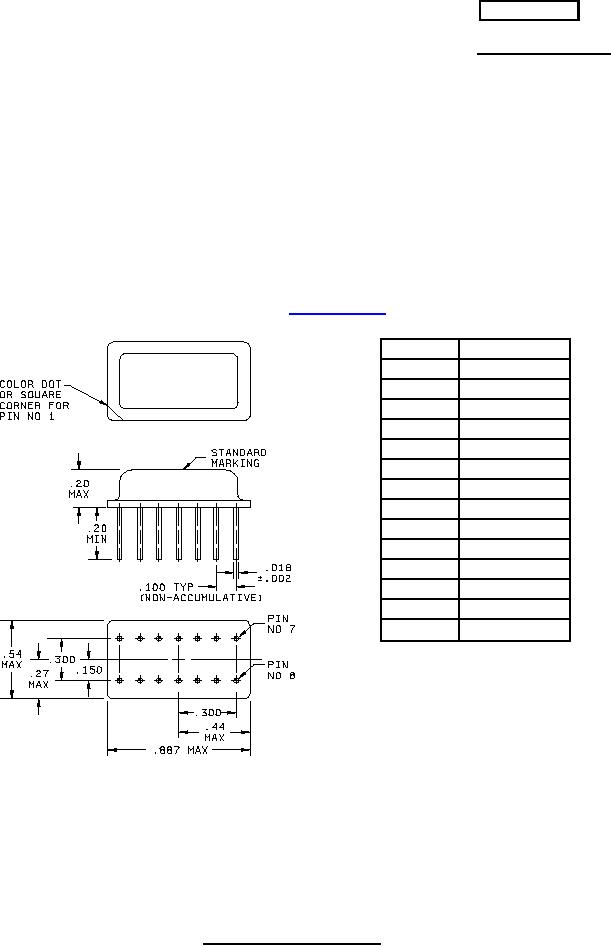

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5955
