INCH-POUND
MIL-PRF-55310/12H
11 June 2009
SUPERSEDING
MIL-PRF-55310/12G
24 February 2005
PERFORMANCE SPECIFICATION SHEET
OSCILLATOR, CRYSTAL CONTROLLED, TYPE 1 (CRYSTAL OSCILLATOR (XO)),
0.05 MHz THROUGH 10 MHz, HERMETIC SEAL, SQUARE WAVE, CMOS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-55310.
Pin number
Function
1
NC
2
NC
3
NC
4
B - (GND/CASE)
(See Note 5)
5
OUTPUT
6
NC
7
NC
8
B+
Inches
mm
Ltr
Min
Max
Min
Max
A
---
.350
---
8.89
B
.480
---
12.19
---
C
.016
.020
0.41
0.51
D
---
.040
---
1.02
E
---
.410
---
10.41
F
---
.330
---
8.38
G
.195
.205
4.95
5.21
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3 Standard marking, except omit Part or Identifying Number (PIN) this location.
4. Unless otherwise specified, tolerances are ±.005 (0.13 mm) for three place decimals and ±.02 (0.5 mm) for two
place decimals.
5. Case to be connected to base pin 4 to permit shielding of the oscillator.
6. All pins with NC function may be connected internally and are not to be used as external tie points or
connections.
7. Pin numbers shown on package are for reference only and need not appear on part.

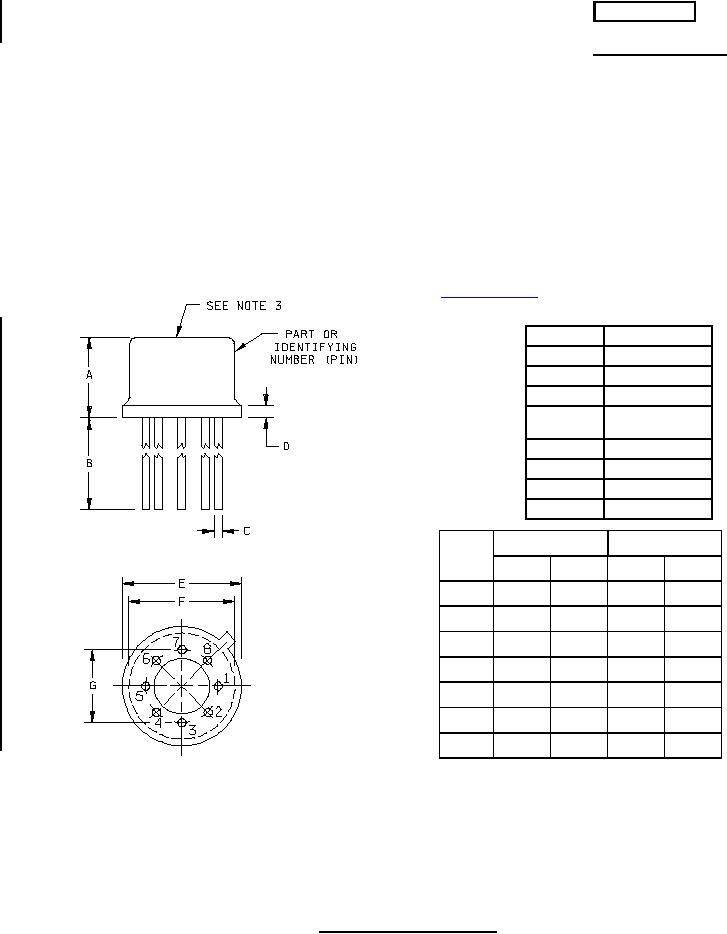

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5955
