INCH-POUND
MIL-PRF-3098/140H
28 July 2011
SUPERSEDING
MIL-PRF-3098/140G
27 July 2005
PERFORMANCE SPECIFICATION SHEET
CRYSTAL UNIT, QUARTZ, CR159/U
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-3098.
Pertinent characteristics: 8 MHz to 20 MHz; fundamental; noncontrolled; series resonance.
Ltr
Inches
mm
Min
Max
Min
Max
A
---
.365
---
9.27
B
---
.265
---
6.73
C
.600
---
15.24
---
D
---
.420
---
10.67
E
.195
.205
4.95
5.21
F
.0175
.0205
0.445
0.521
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. The crystal unit shall not be trimmed after sealing.
4. Marking shall be in accordance with MIL-PRF-3098.

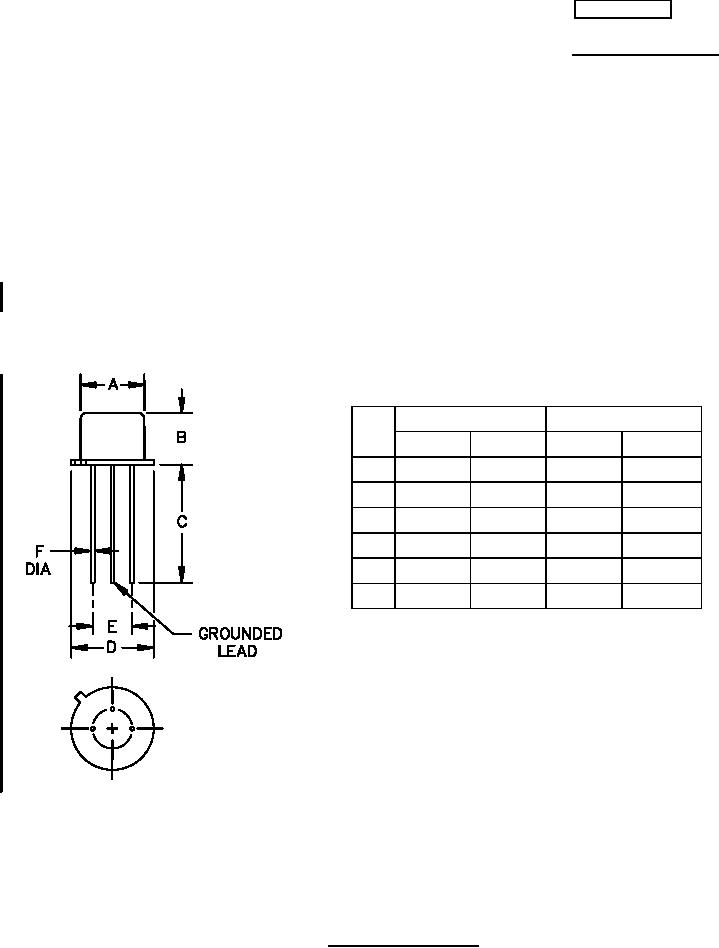

FIGURE 1. Crystal unit - CR159/U.
